Barmate chain&tire plug tool

Barmate chain & tire plug tool is your best riding companion — a multitool stowed in your handlebar, crank axle or pocket is ready to solve trailside issues with ease. Be equiped and self supported, never let a breakdown end your ride.

• Firmly hold in place by expendable rubber

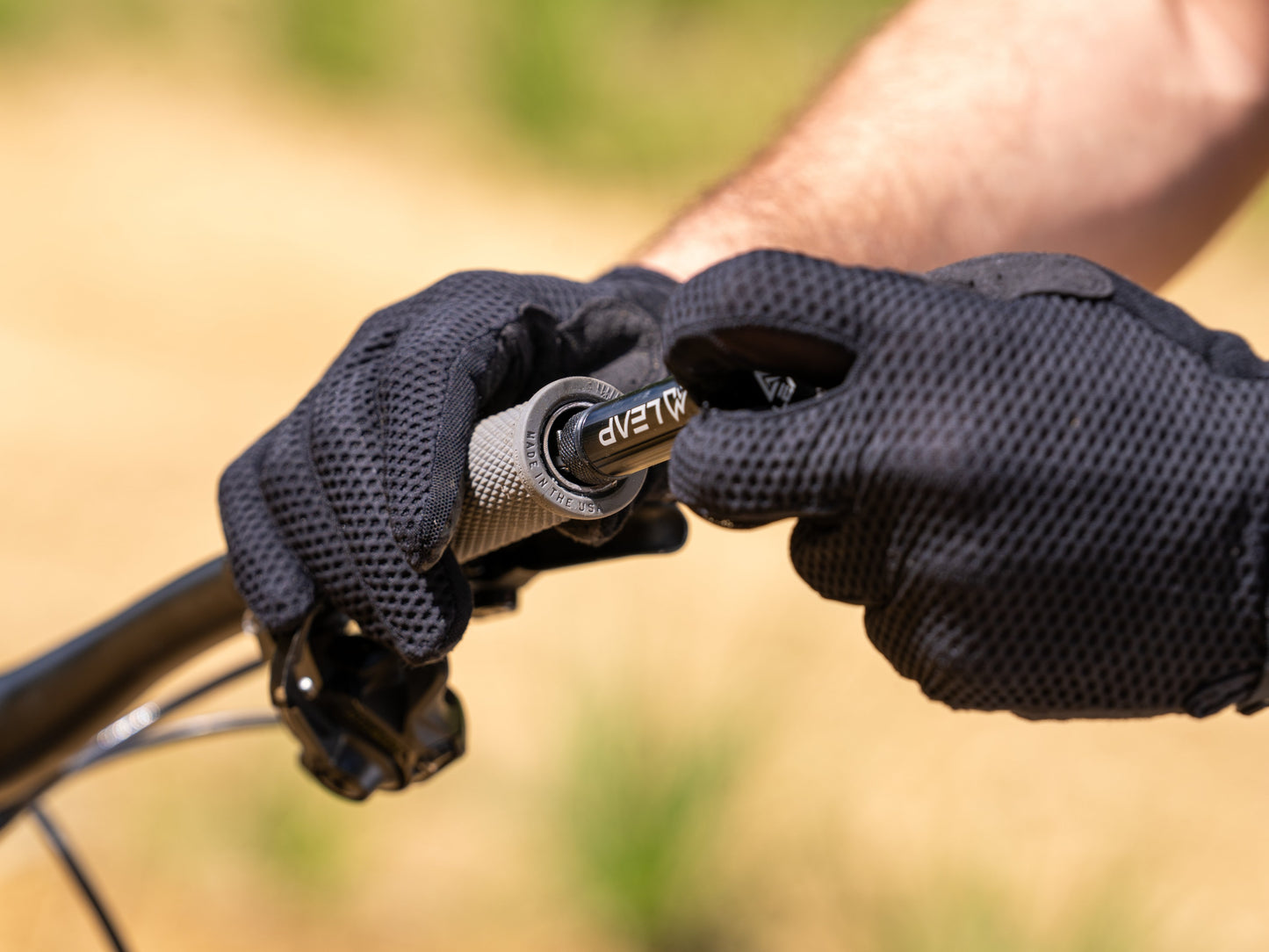

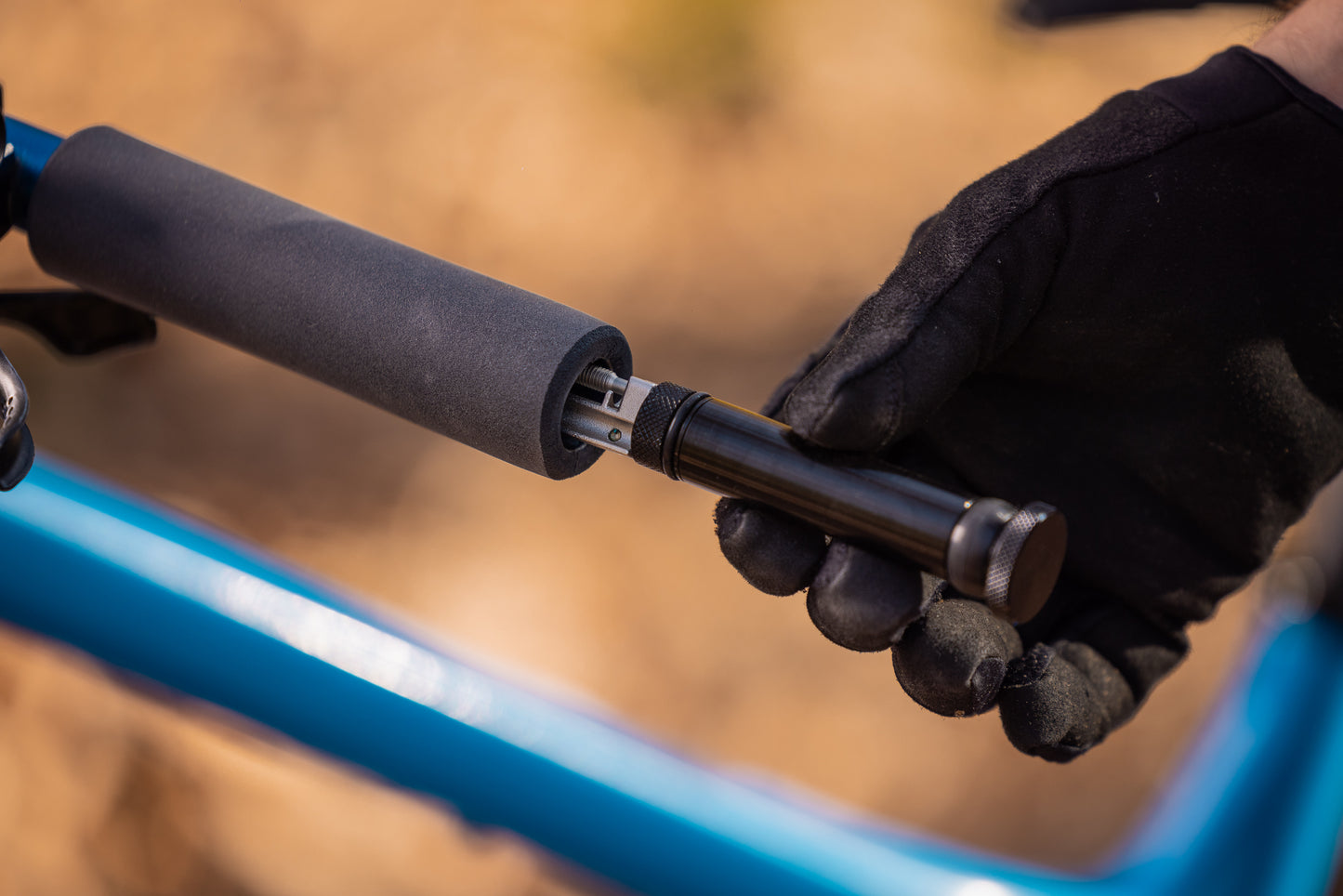

• Easy installation and removal with a twist of end plug
• Compact & light, made of 6061 aluminum
• Essential tool for trailside repairs

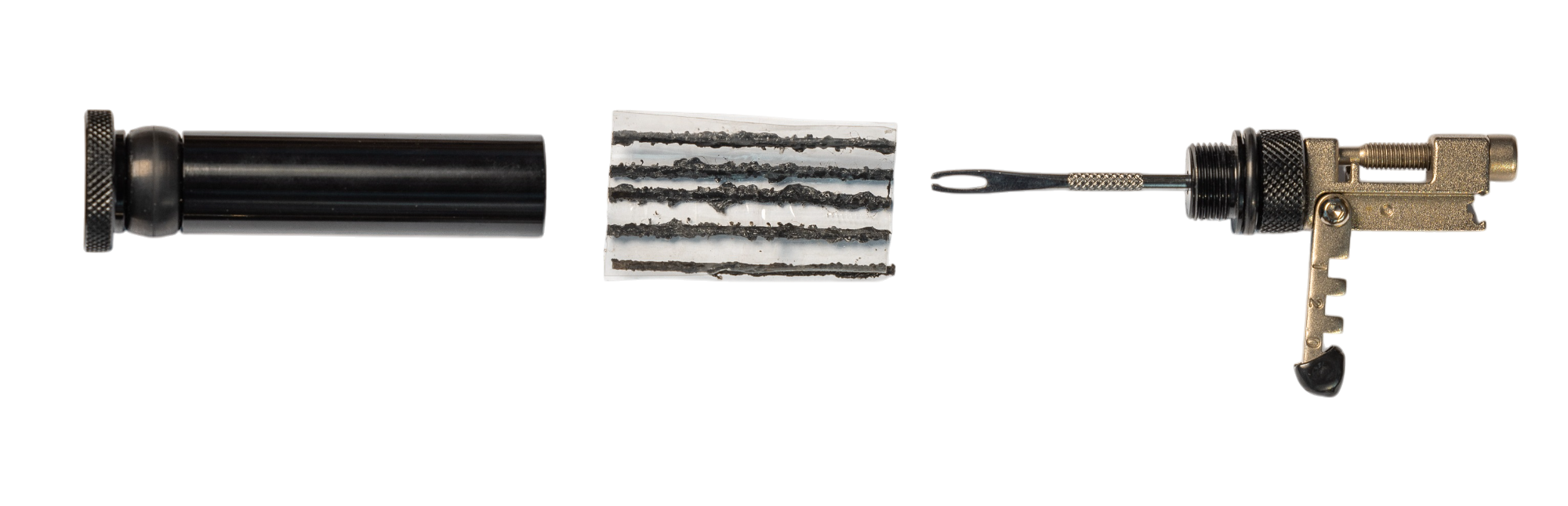

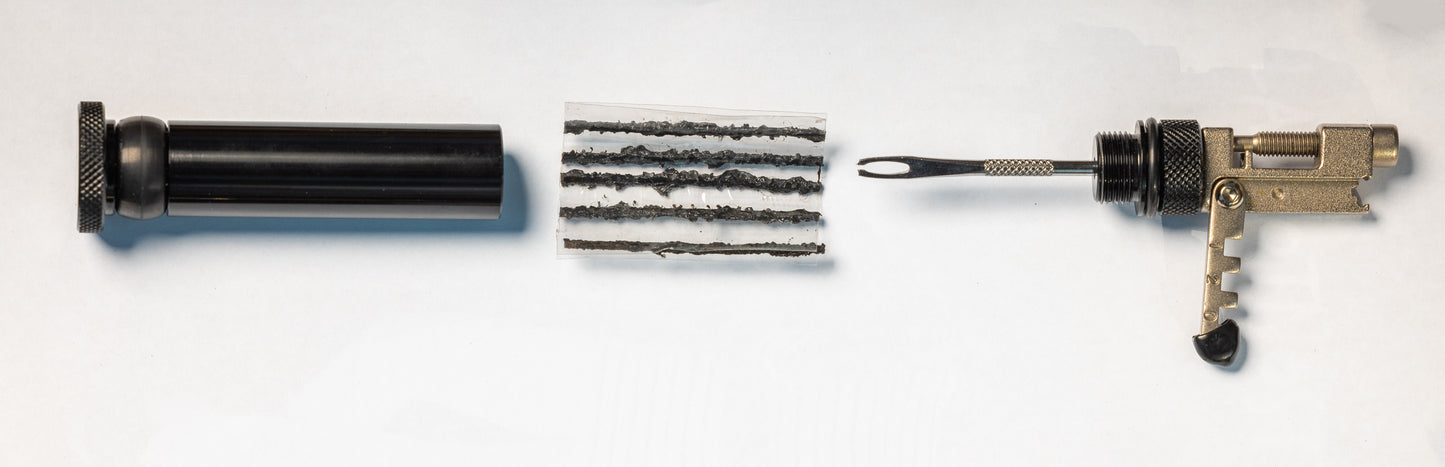

Barmate chain & tire plug tool features

• 7 functions

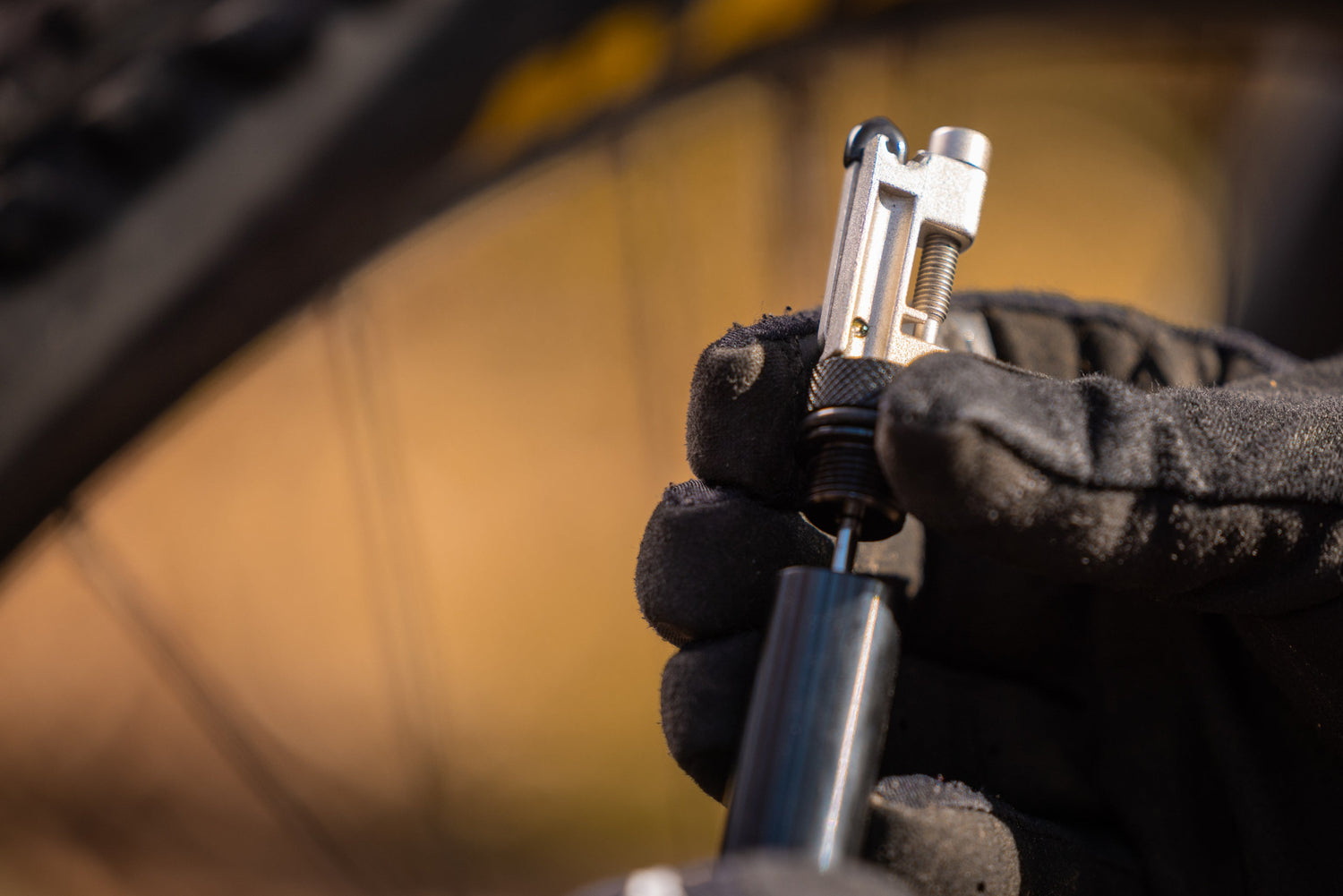

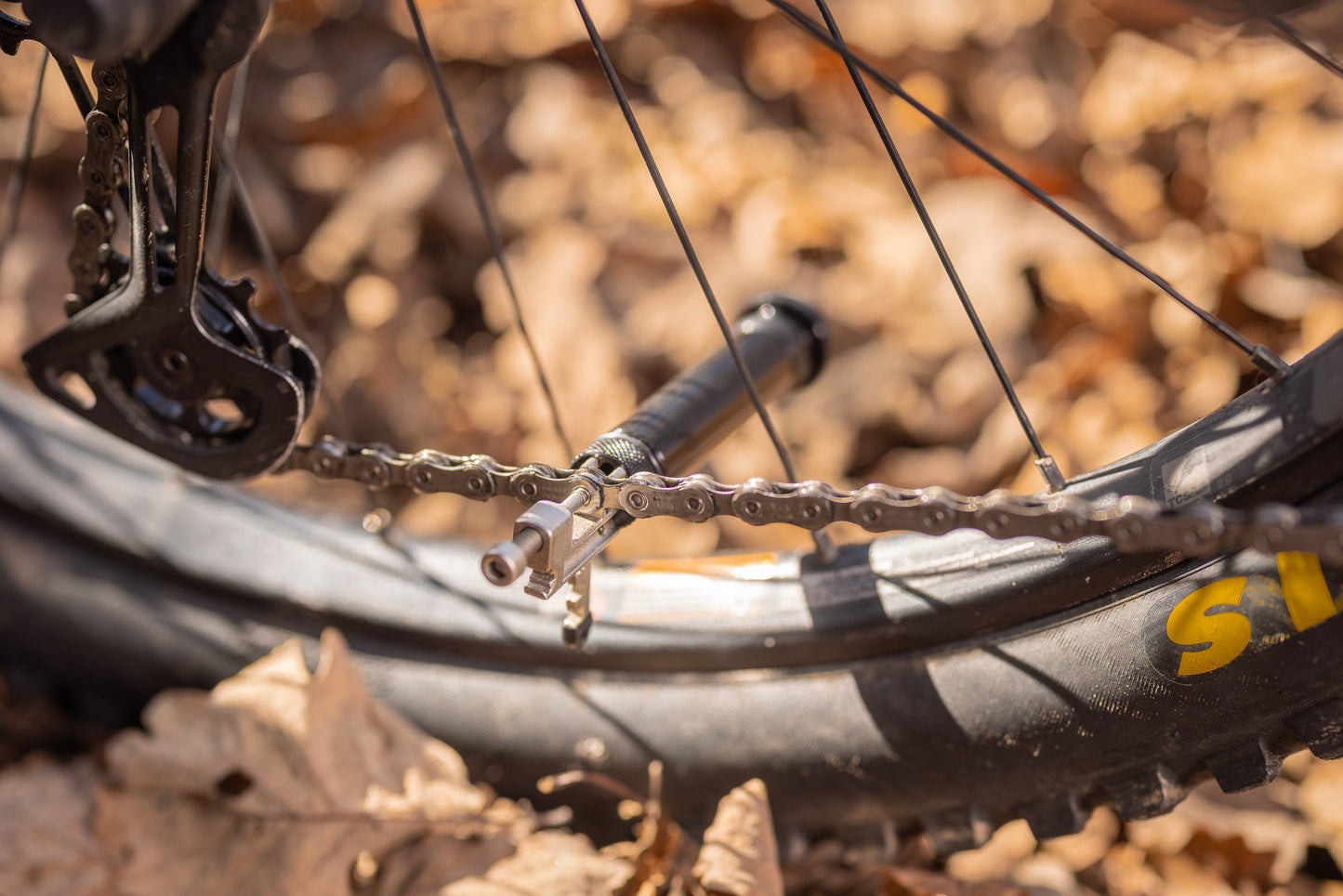

• Chain tool compatible with all bicycle chains, including 12 speed

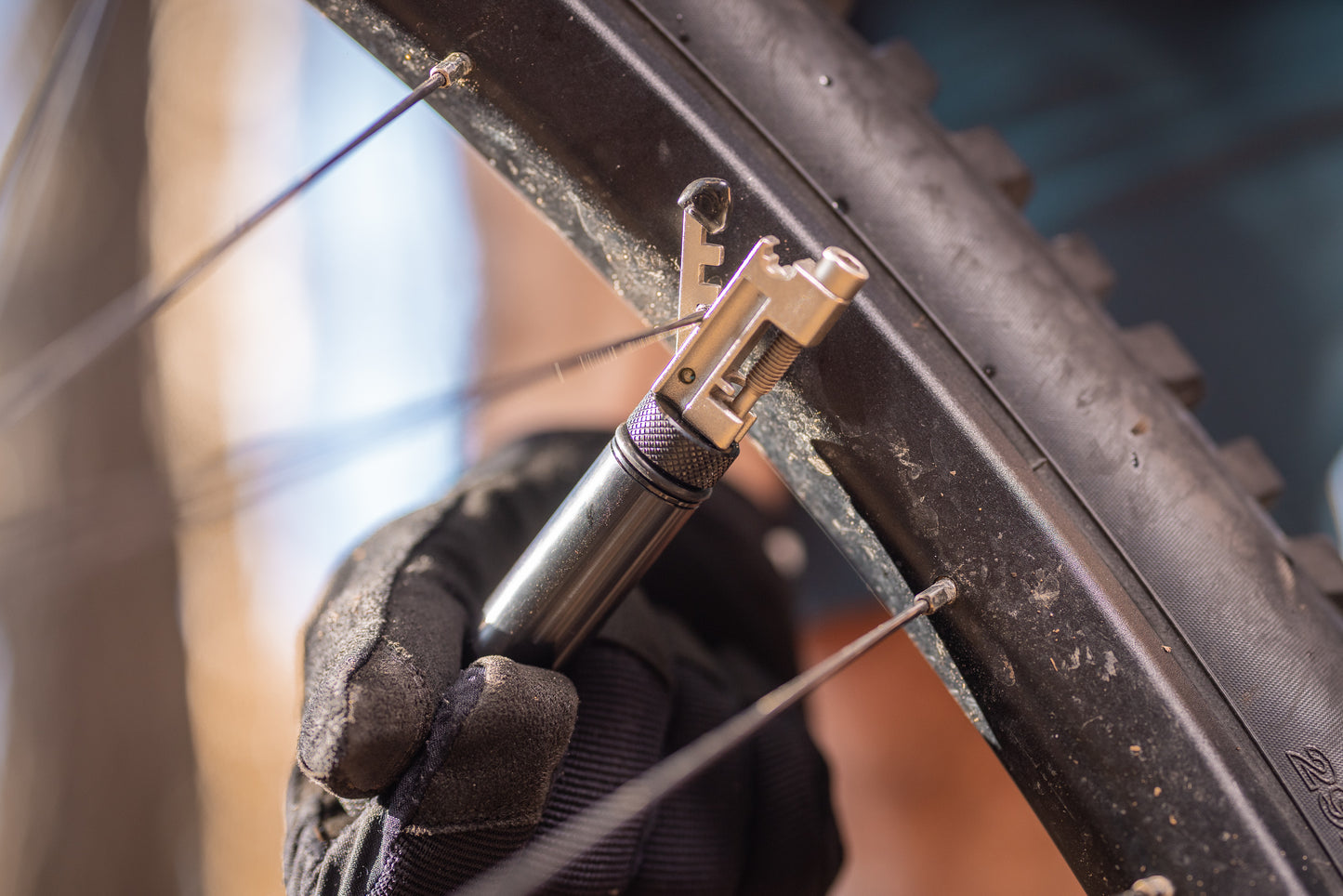

• 4 spoke wrenches - #0 - 3,23mm, #1 - 3,30m, #2 - 3,45mm, #3 – Mavic 6 spline, 5,5mm.

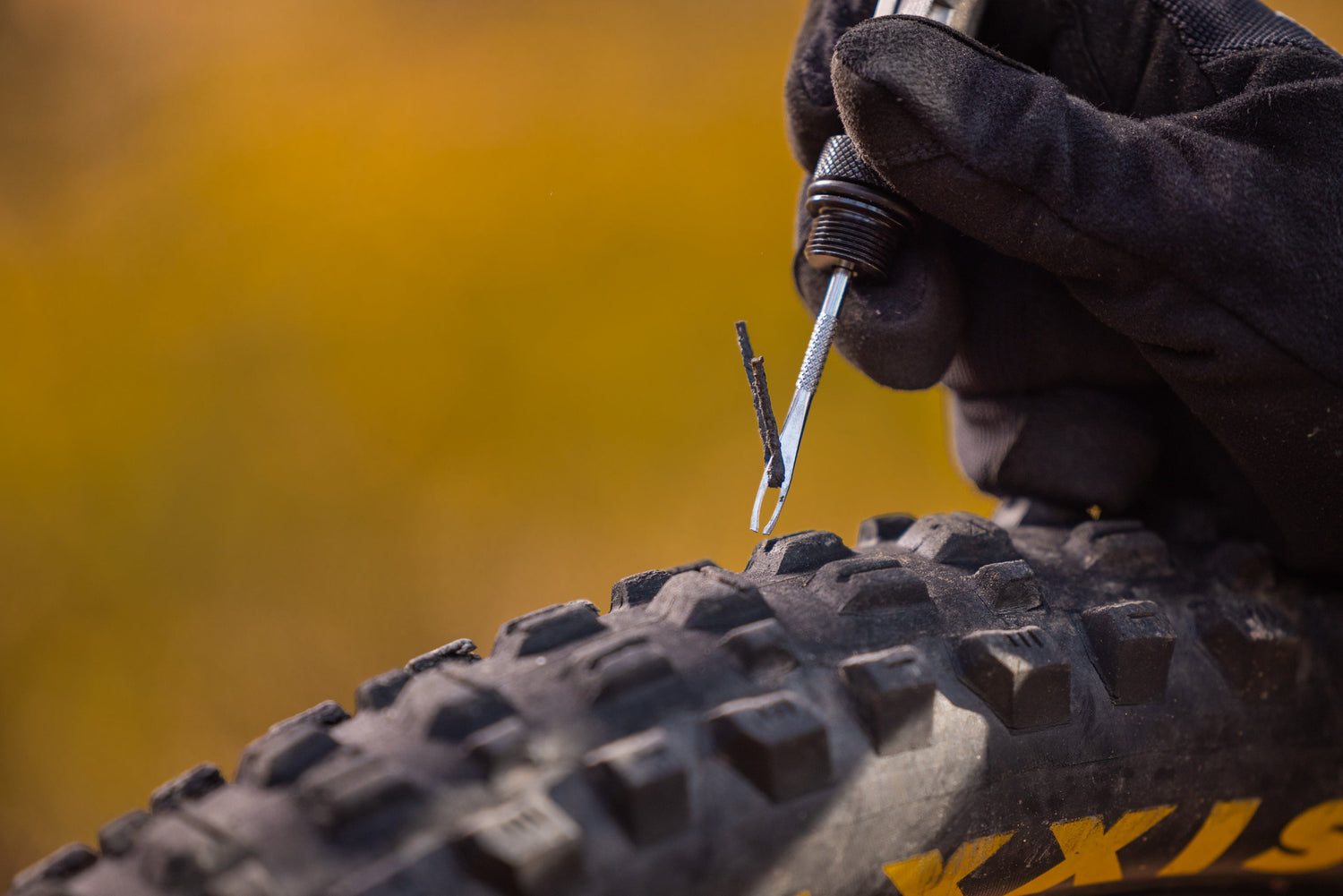

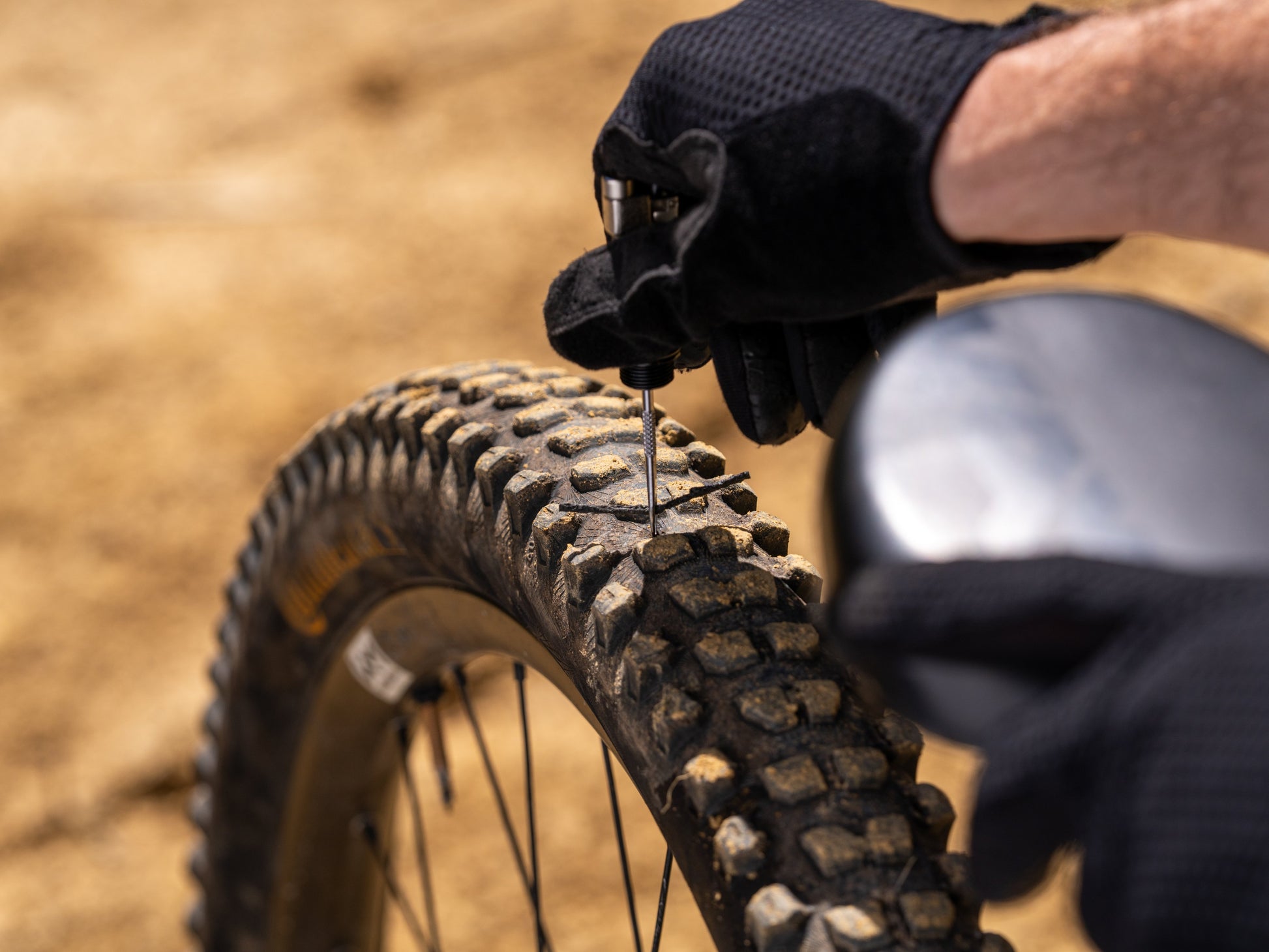

• Tire plug tool with integrated file
• 5× bacon strip plug (3,5 × 50 mm)

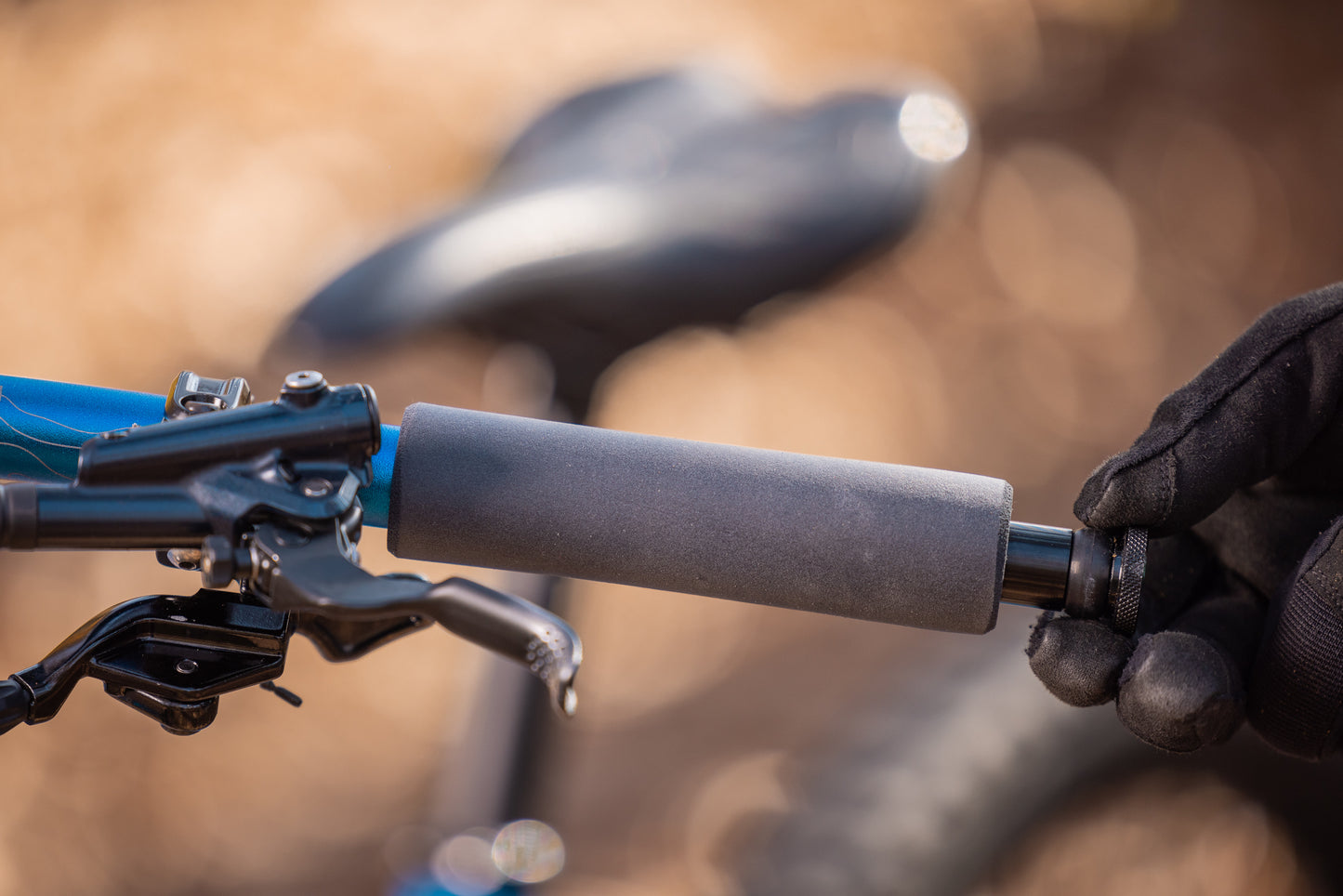

• Store in handlebar (locks in place with expendable rubber).
• Weight: 70g

Tehnical data

• Tool weight: 70g
• Material: tool body made of 6061 aluminum and anodized, swivel head, tire plug tool and bits are made of tool steel and chrome plated.

Note:

• Handlebar inner diameter must be greater than 18,7mm to fit Barmate system.
• Known compatible handlebars: Race Face Atlas and many others.
• Know incompatible handlebars: Most carbon bars.

Alternative use:

• Tool can be mounted in your non tappered hollow crak axle.

• Barmate chain&tire plug tool - crank axle needs to have internal diameter between 18,7 - 21,8 mm and minimum insertion depth of 126m
