Barmate system

The Barmate System is your ultimate riding buddy - featuring two multi-tools discreetly stowed in your handlebar, ensuring you're always prepared for any trailside repair.

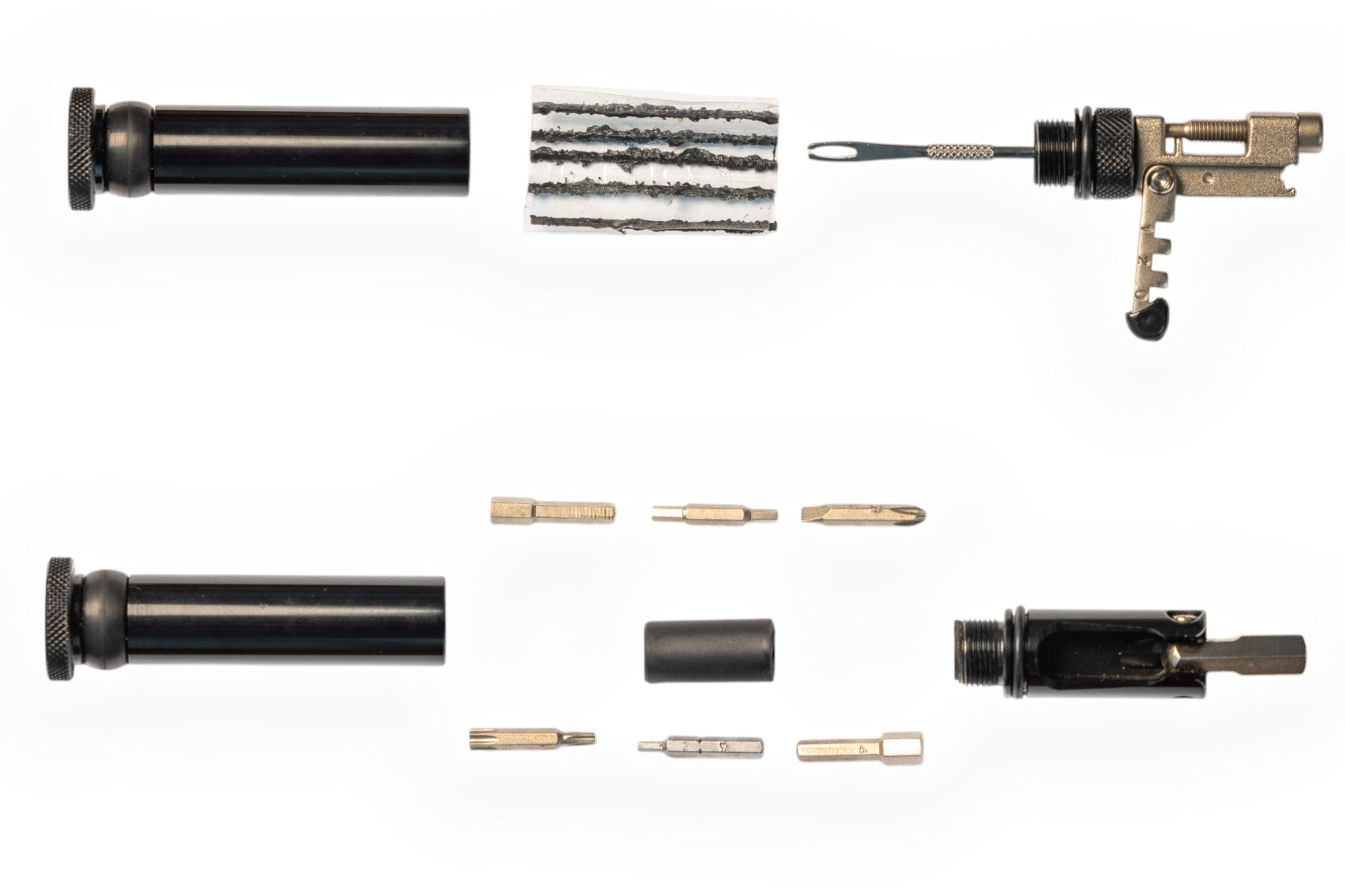

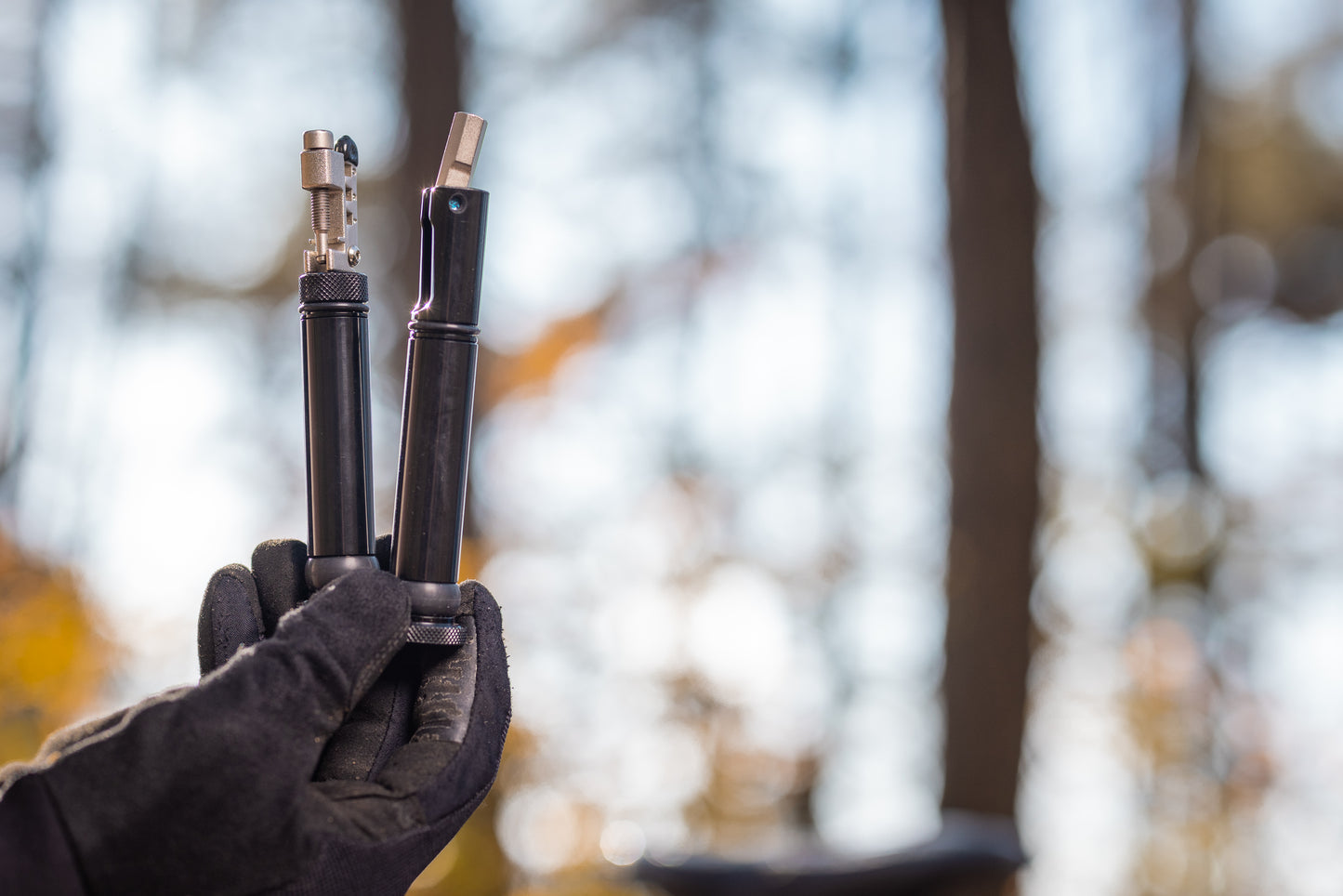

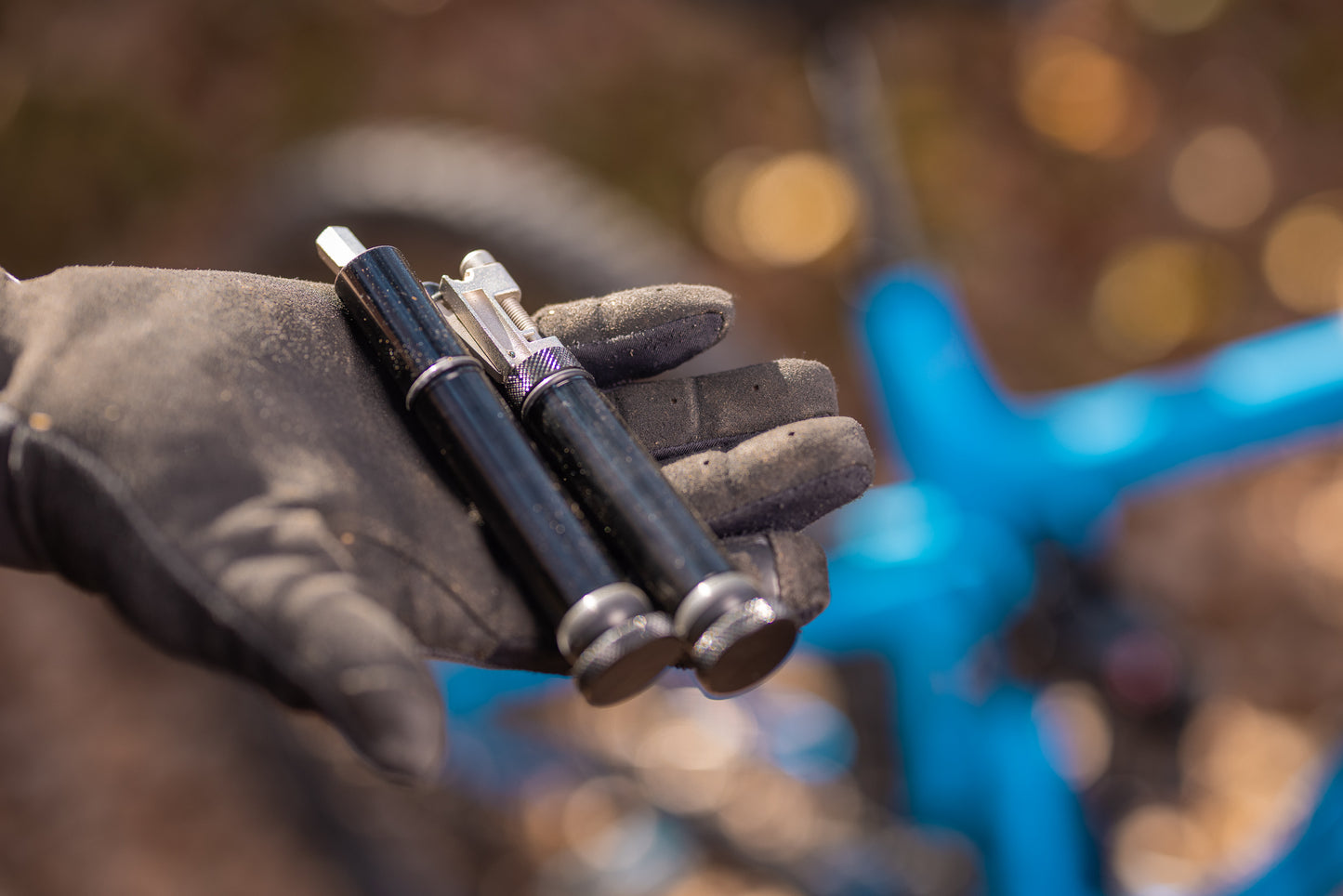

• Two multitools stored in your bike`s (flat) handlebar
• Barmate bit tool + Barmate chain & tire plug tool
• Firmly hold in place by expendable rubber

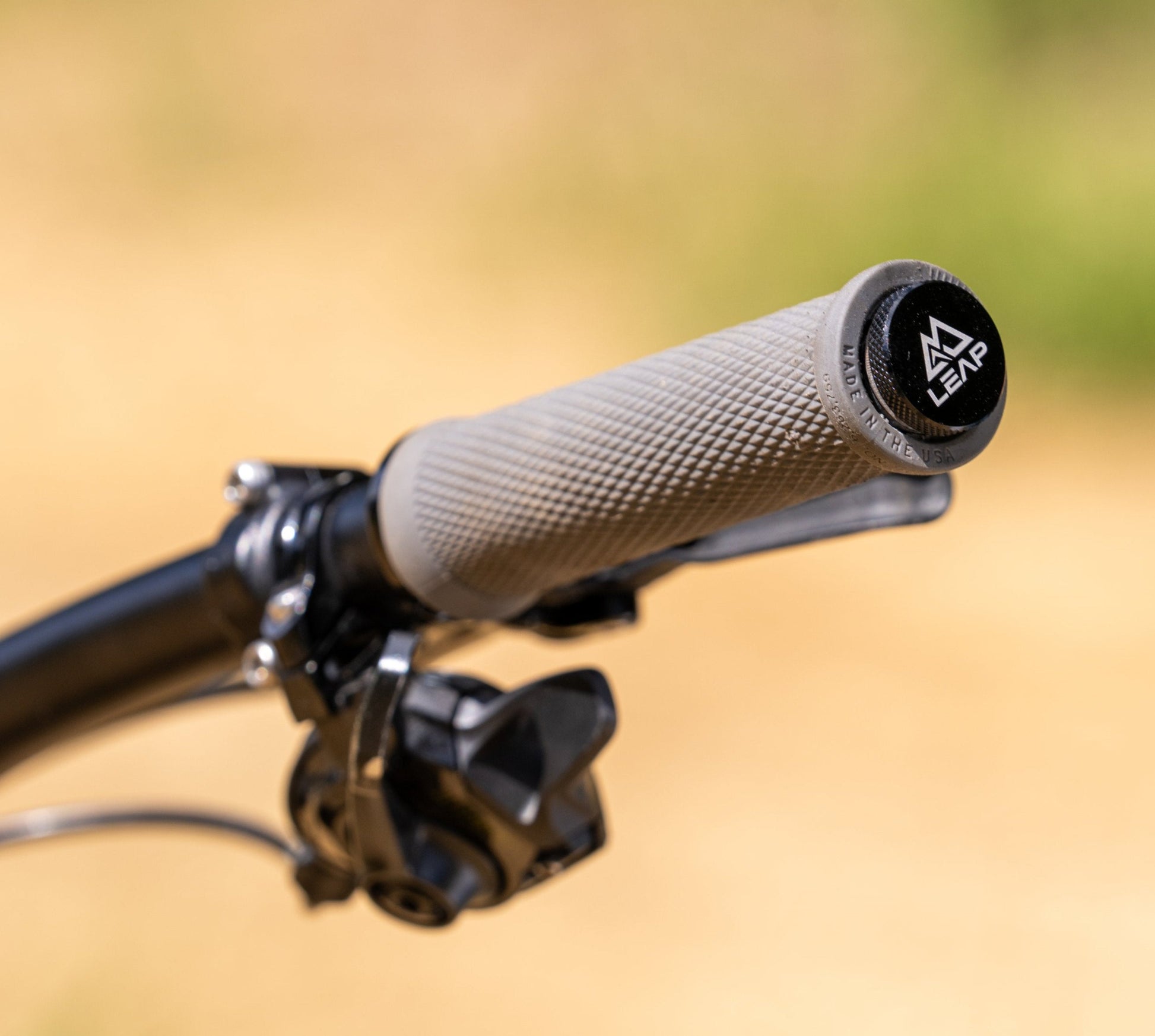

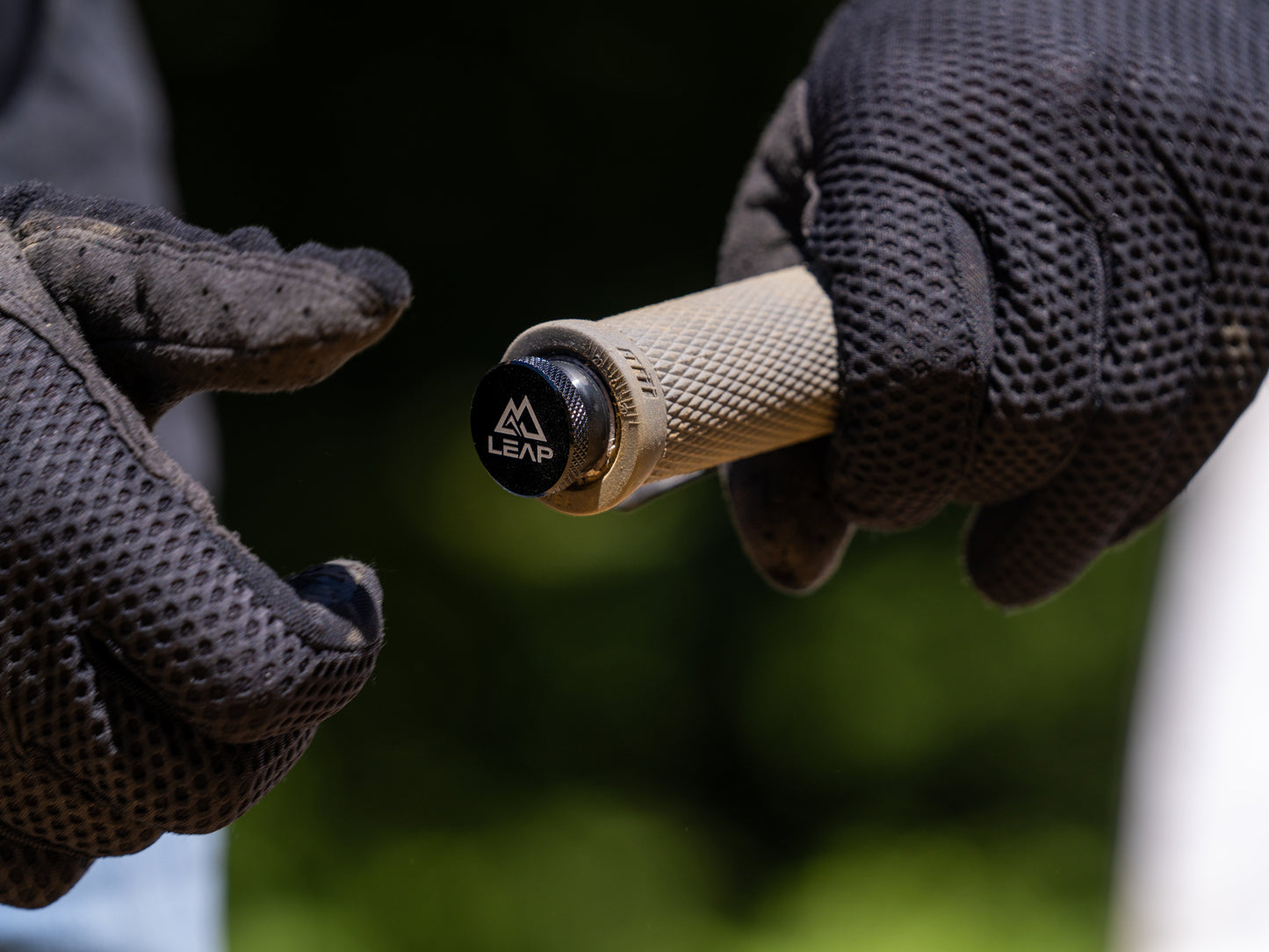

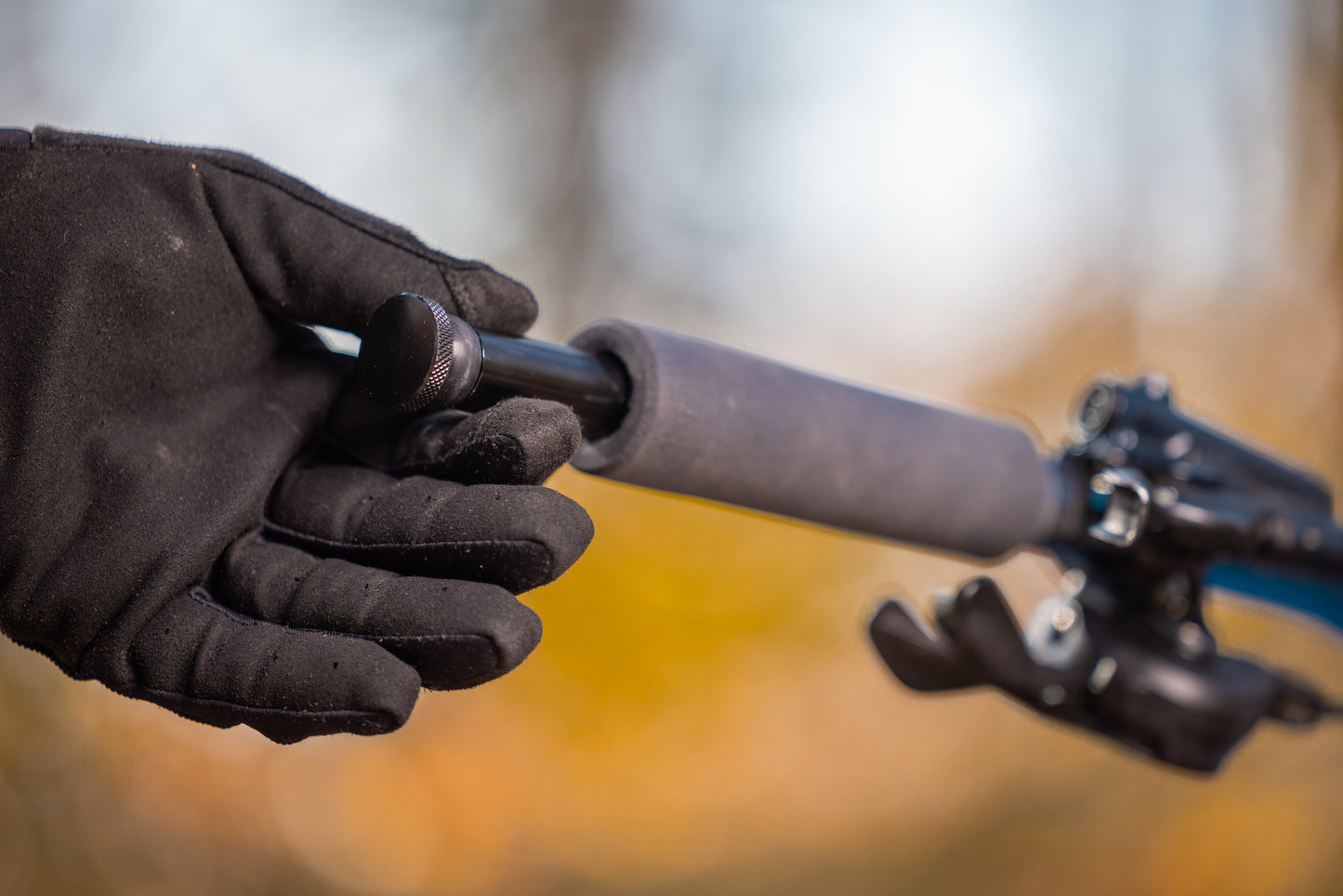

• Easy installation and removal with a twist of bar end plug
• Compact & light, made of 6061 aluminum
• Essential tools for any trailside repair
• System weights only 150g

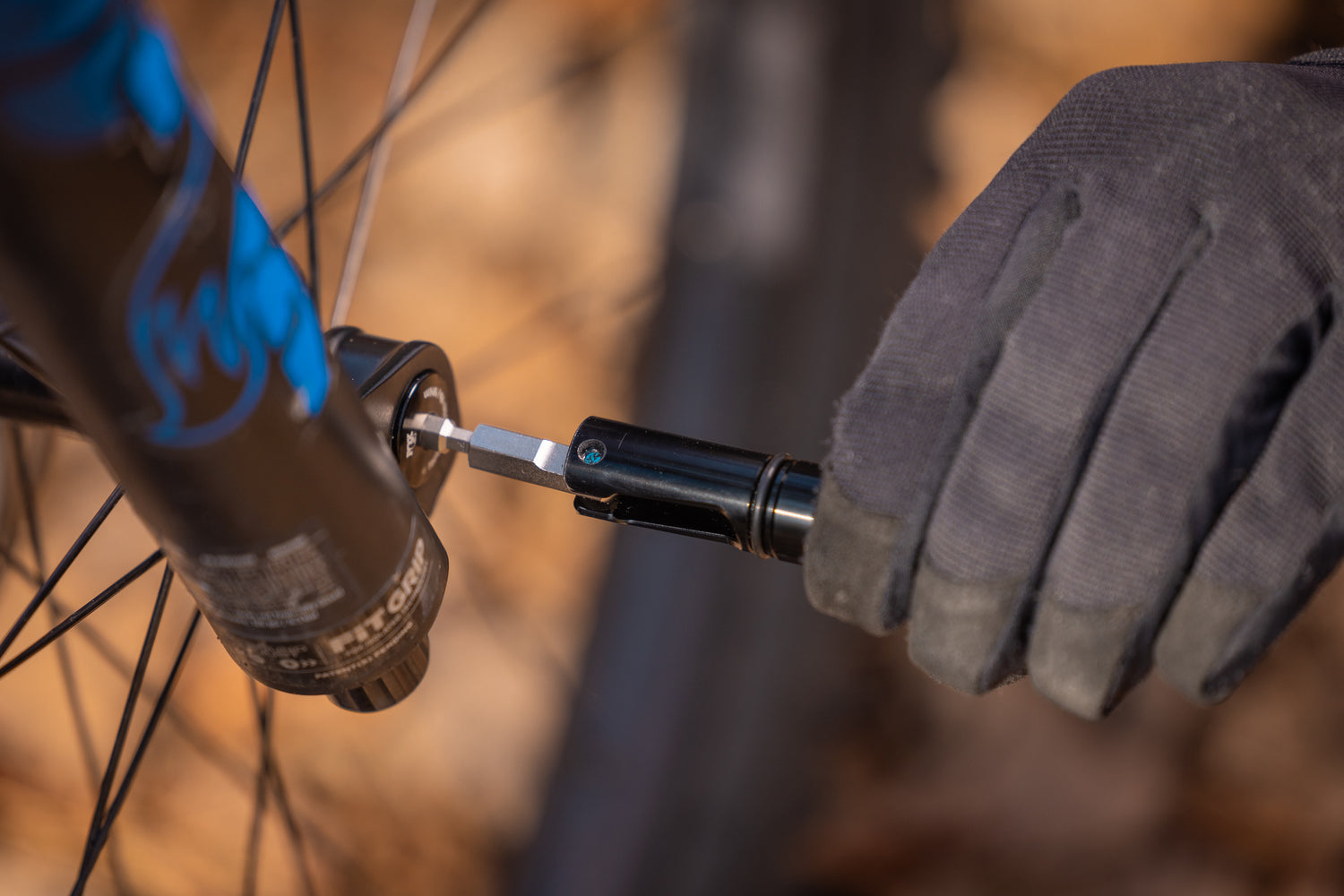

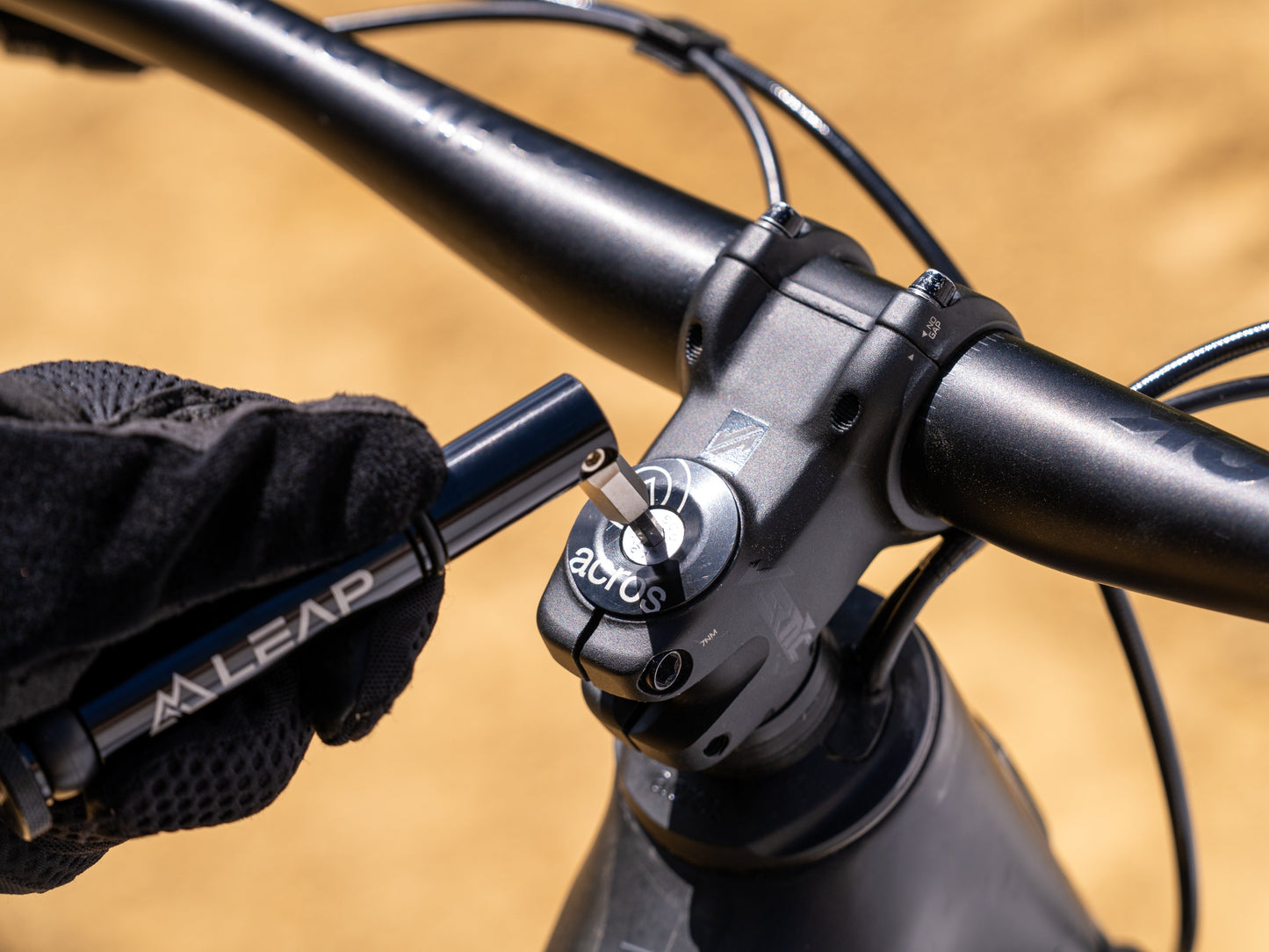

Barmate bit tool features

• 11 functions

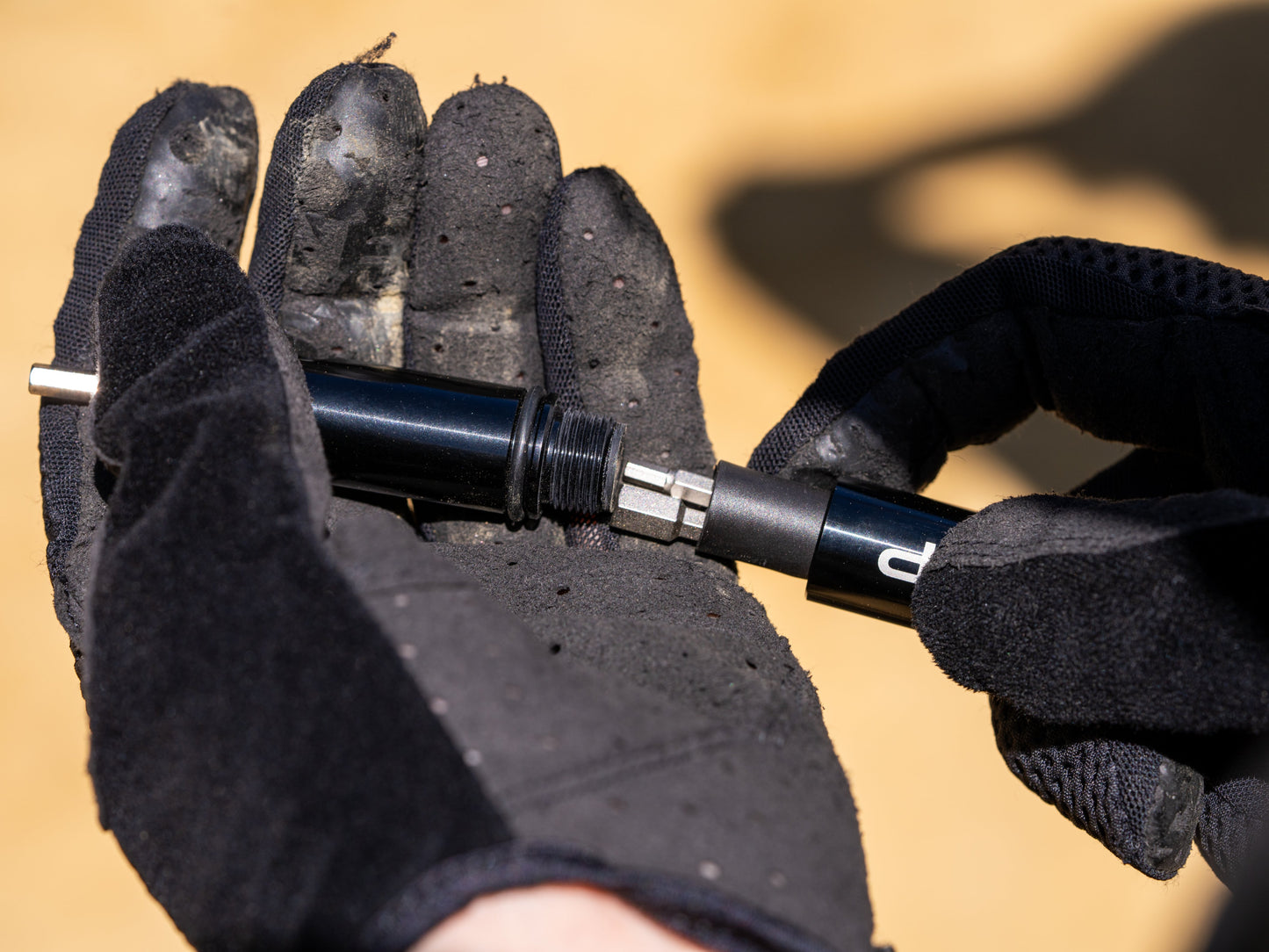

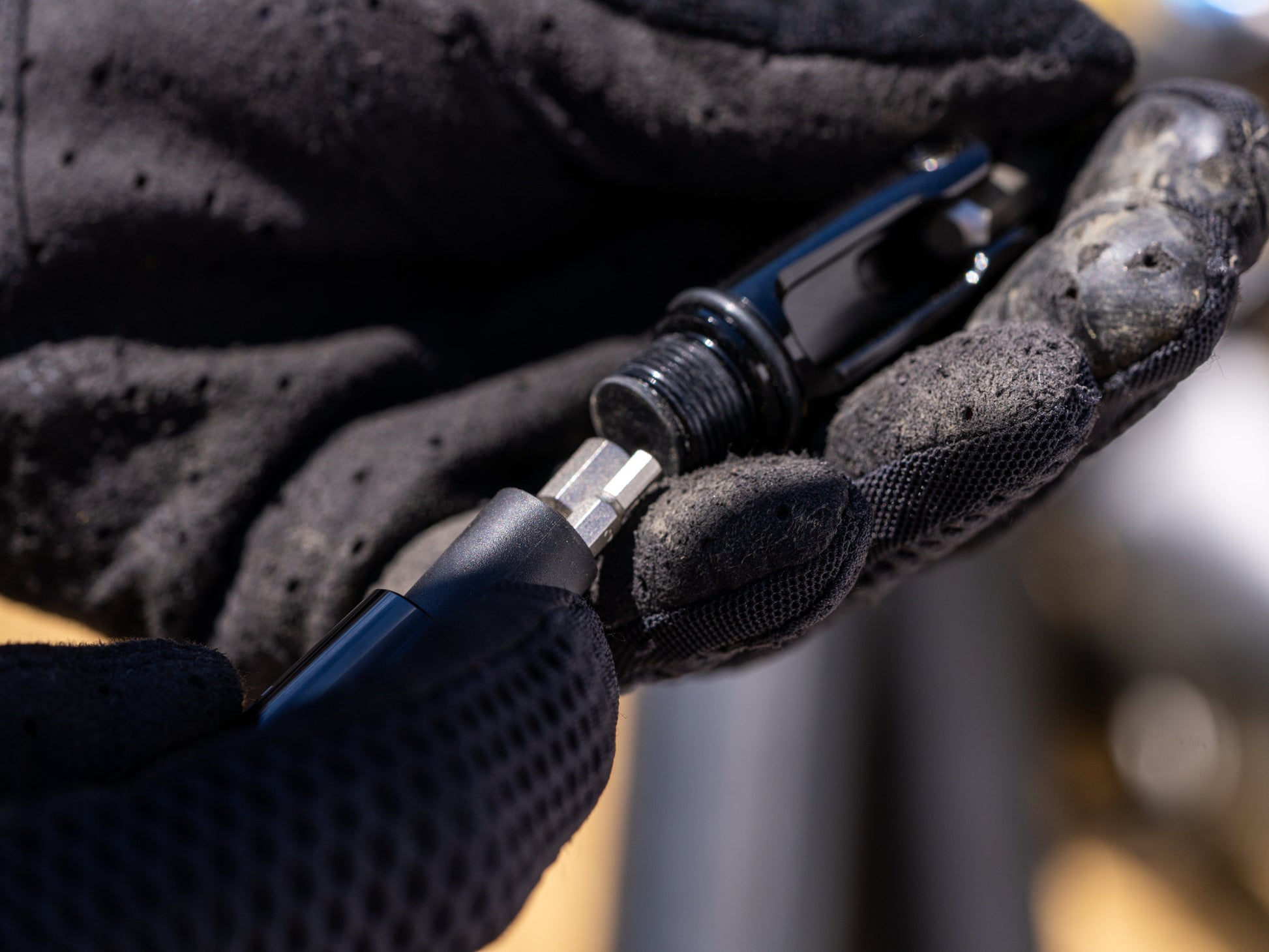

• Swivel head helps access hard to reach places

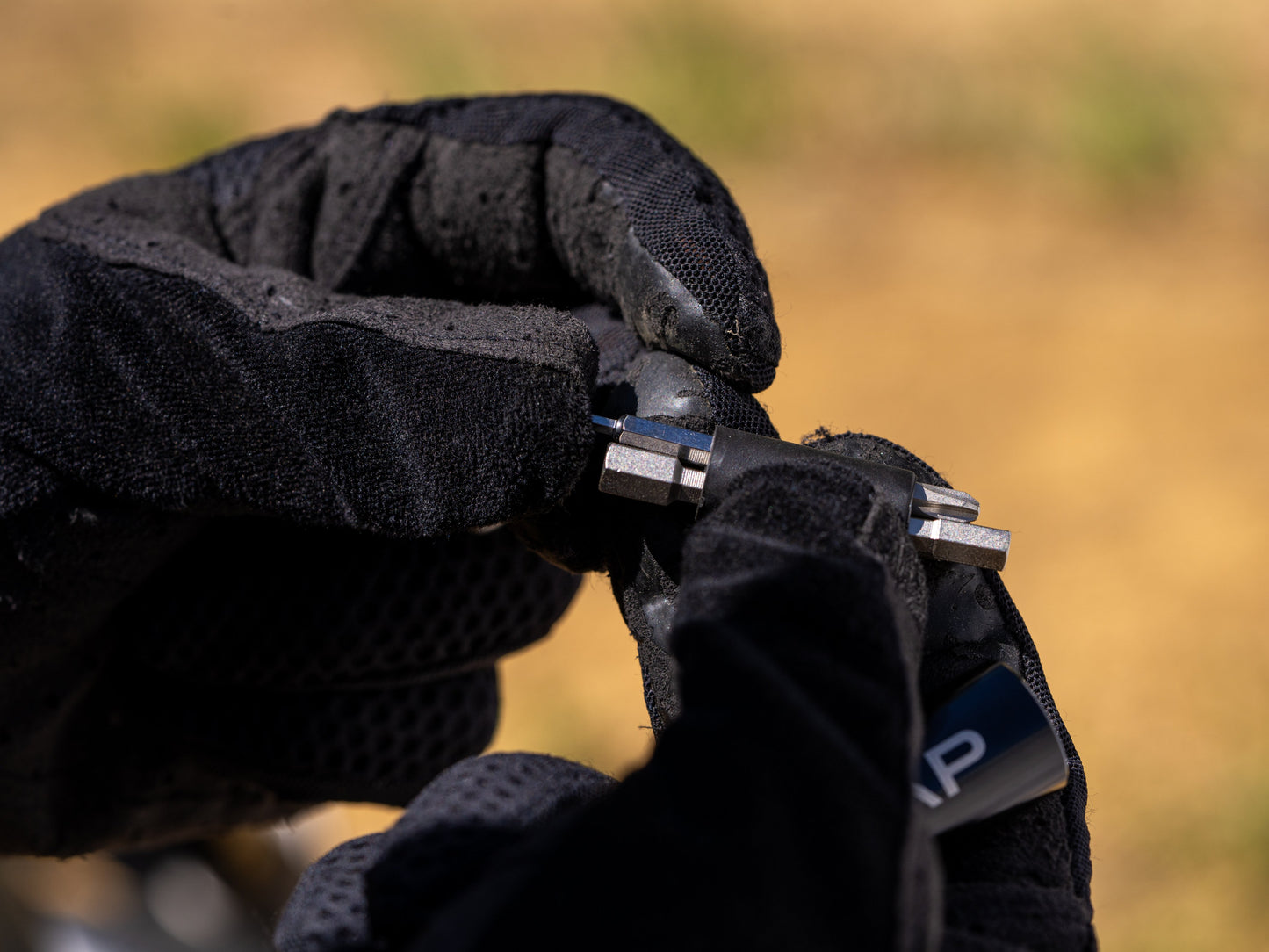

• Hex 8, 6, 5, 4, 3, 2,5 and 2, Torx 10, 25, Flat head 3,5 and Phillips #2
• Tool body doubles as breakerbar, when tool head is bent
• Store in handlebar & some hollow crank axles (check compatibility paragraph)
• Locks in place with expendable rubber

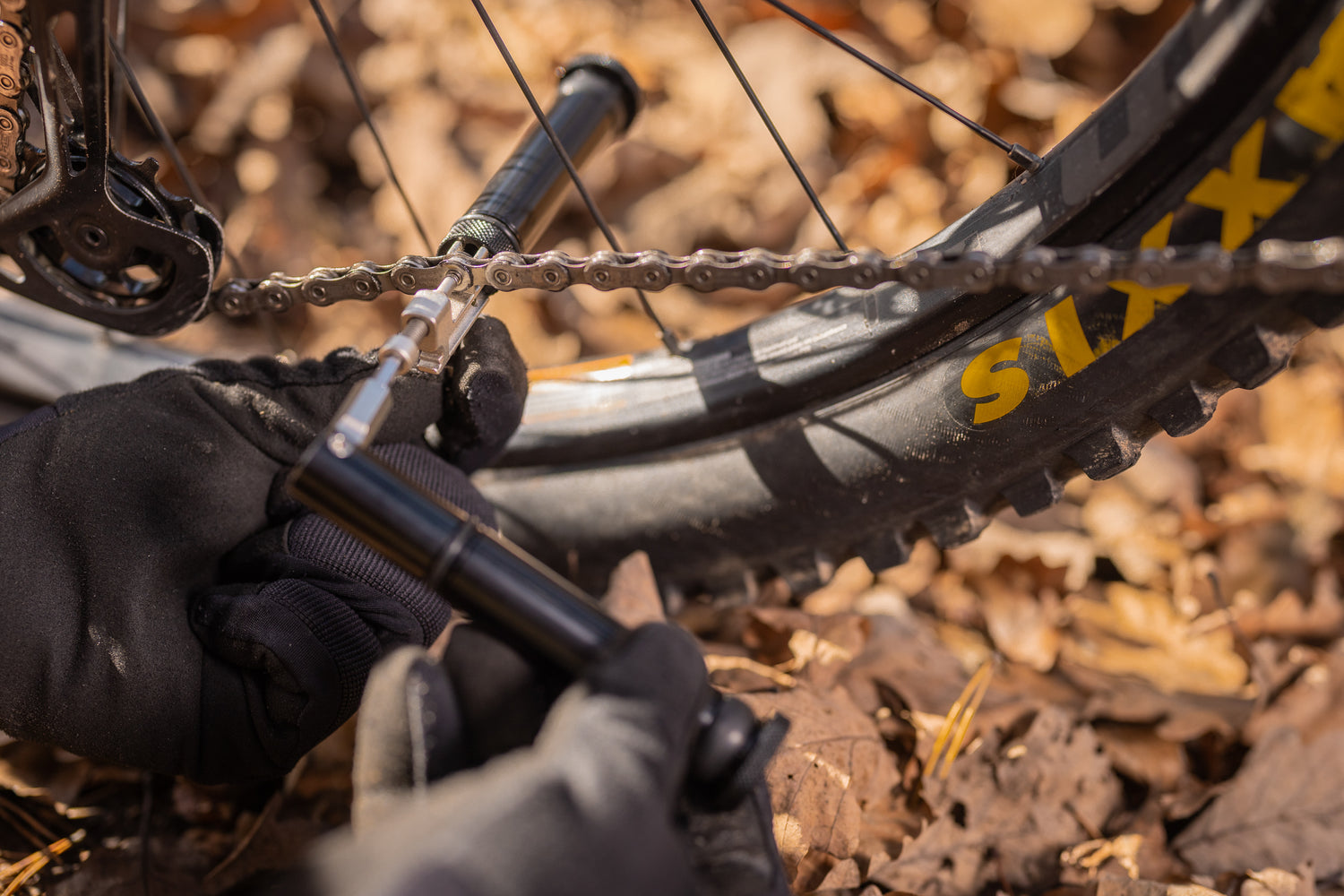

Barmate chain & tire plug tool features

• 7 functions

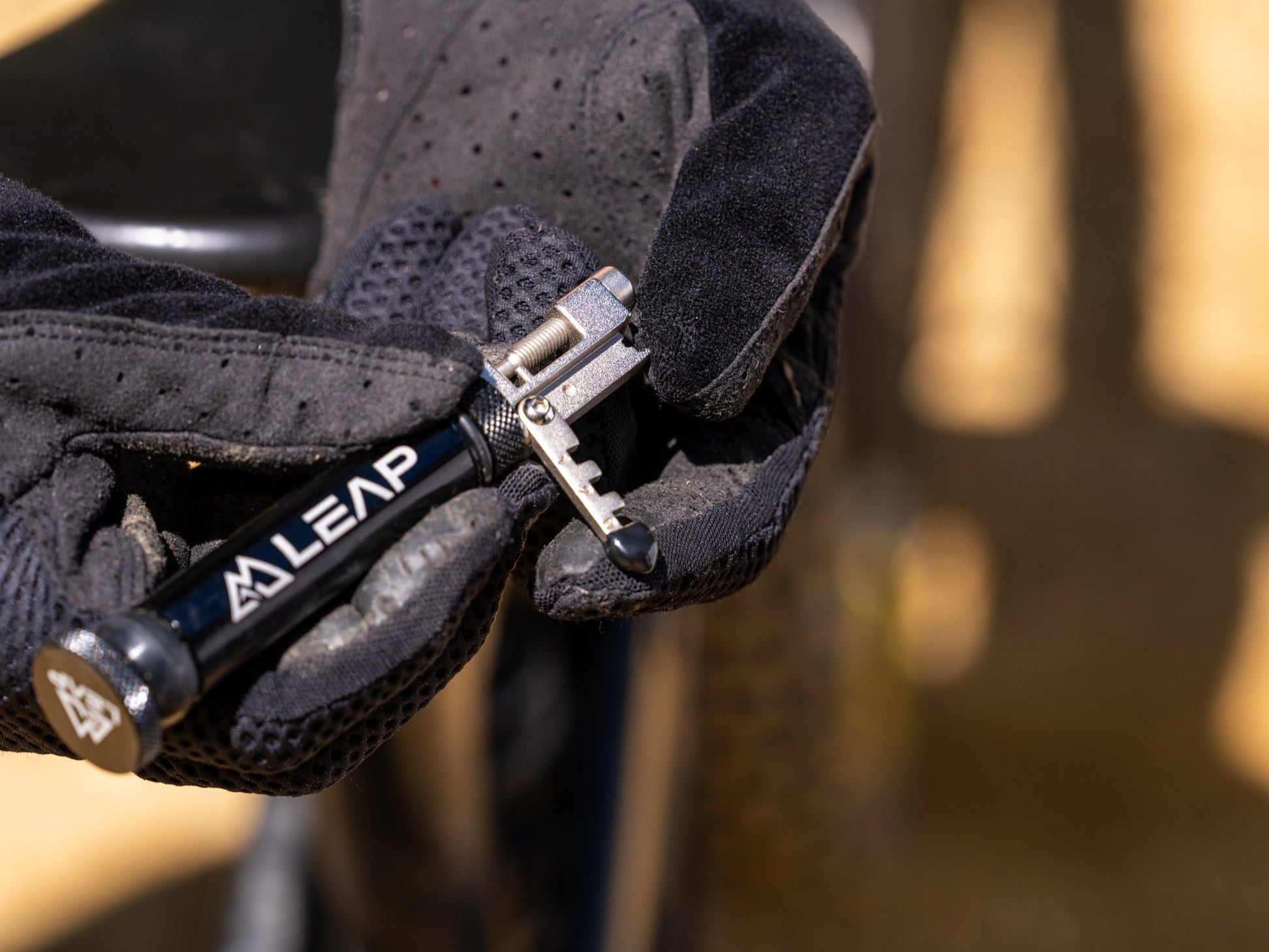

• Chain tool compatible with all bicycle chains, including 12 speed
• 4 spoke wrenches - #0 - 3,23mm, #1 - 3,30m, #2 - 3,45mm, #3 – Mavic 6 spline, 5,5mm.

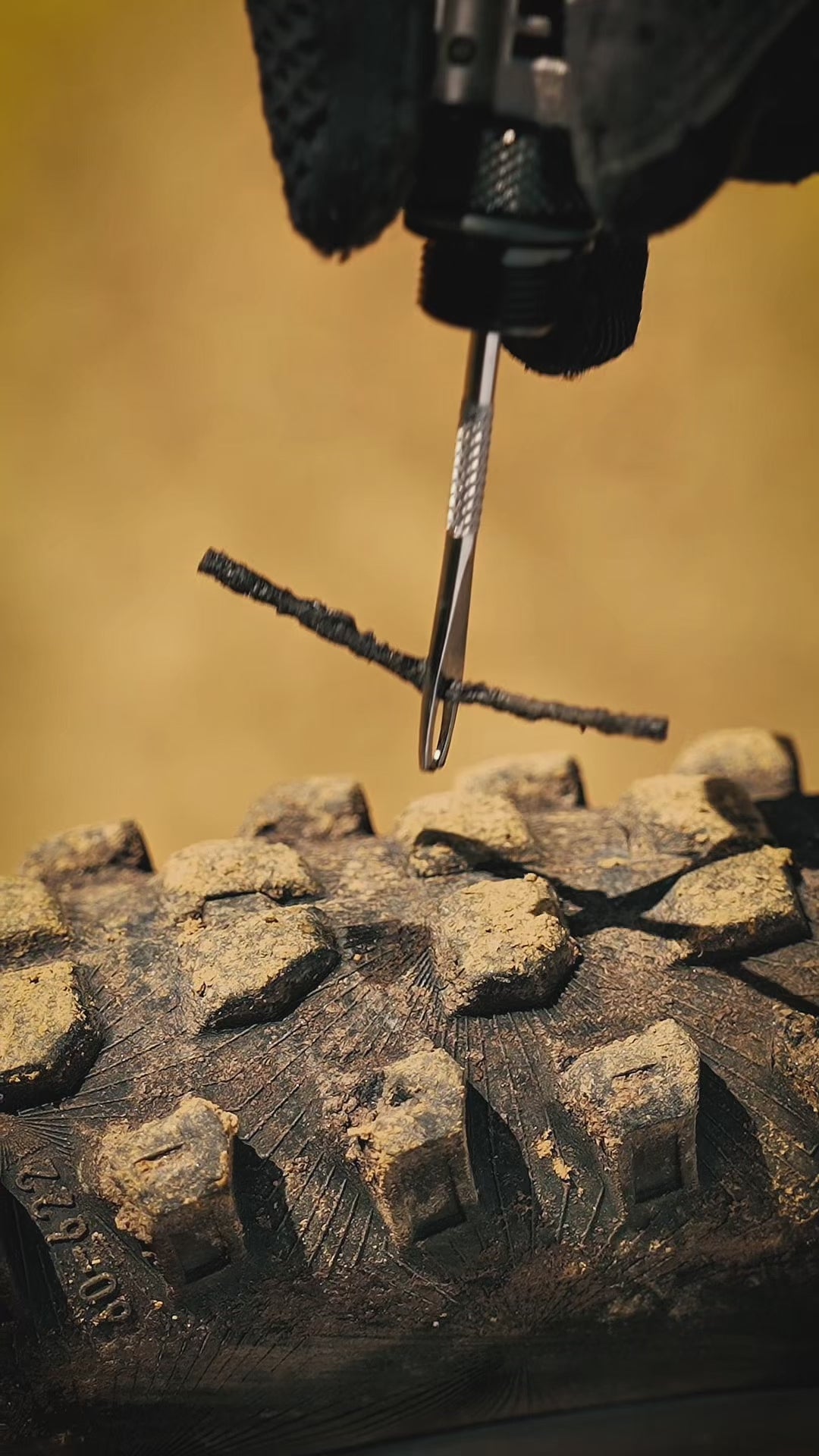

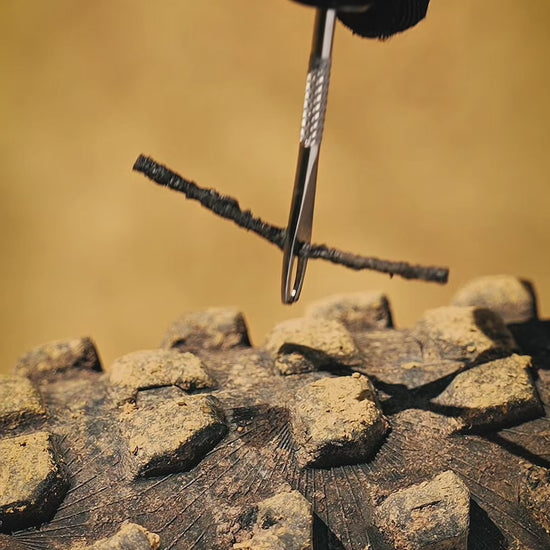

• Tire plug tool with integrated file
• 5× bacon strip plug (3,5 × 50 mm)
• Store in handlebar & some hollow crank axles (check compatibility paragraph)
• Locks in place with expendable rubber

Tehnical data

• System weight: 150g
• Material: tool body made of 6061 aluminum and anodized, swivel head, tire plug tool and bits are made of tool steel and chrome plated.
• Torque: max torqe for bit hex 8 is 35Nm, max torque for bit hex 4, 5, 6 and torx 25 is 20Nm, max torque for all other bits is 10Nm.

Note:

• Handlebar inner diameter must be greater than 18,7mm to fit Barmate system.
• Known compatible handlebars: Race Face Atlas and many others.
• Know incompatible handlebars: Most carbon bars.

Alternative use:

• Tool can be mounted in your non tappered hollow crak axle.
• Barmate bit tool -  crank axle needs to have internal diameter between 18,7 - 21,8 mm and minimum insertion depth of 120mm.
• Barmate chain&tire plug tool - crank axle needs to have internal diameter between 18,7 - 21,8 mm and minimum insertion depth of 126mm.
